Show Start-up Screen

Available in: FREE, Plus, Pro Architectural

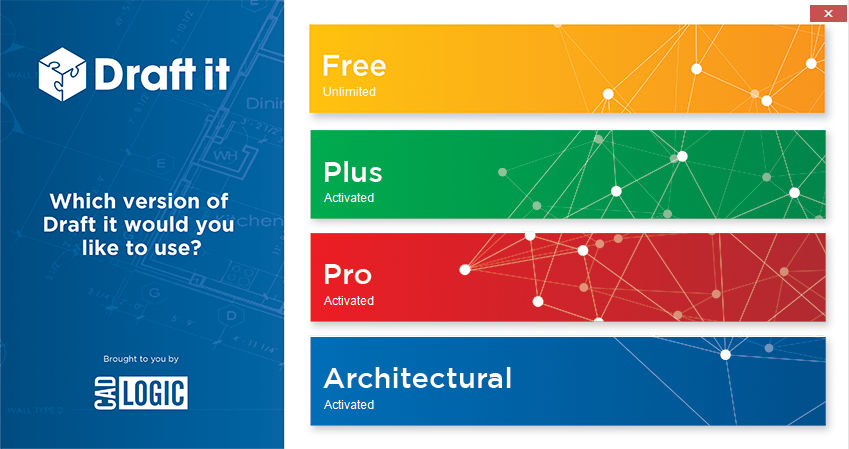

At the bottom of the File Menu the Show Startup Screen option option allows the Start-up Screen to be turned on/off. To show the start-up screen ensure that this option is selected and the next time Draft it starts the start-up screen will be shown as in the image below.
