Tutorial 2 Part 3

Available in: FREE, Plus, PRO & Architectural

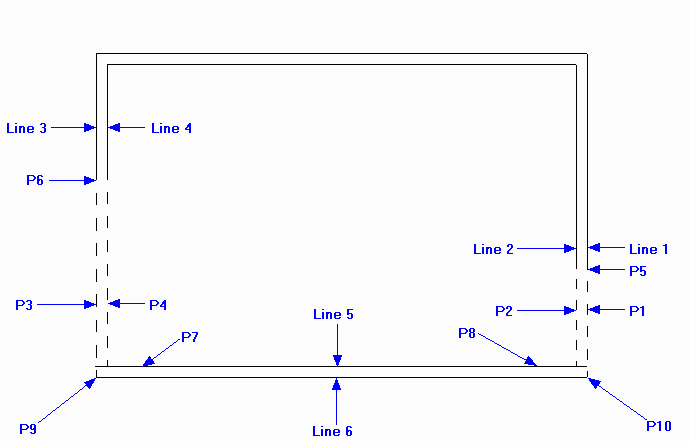

Next we will create the door openings. In the following diagram the portions of the lines to be removed are shown as dotted.

Before we can use the Trim / Extend command to modify the individual lines of the rectangle we will need to explode the polyline that the rectangle is made out of. Exploding the polyline will convert the polyline that the rectangle is made of into individual lines.

To explode the rectangles first select the outer rectangle then click on the explode Explode button button, once this is complete please select the inner rectangle and click on the explode button.

Now that the rectangles have been exploded into individual lines we can move on to using the trim extend functionality to modify the lines.

Select the trim extend button and the prompt reads:

Give Arc/Line to Trim/Extend:

We need to select the line near to the end to be modified so click on 'Line 1' near to P1. At this point the system toolbar changes to display either Distance Input distance input mode button or Snap input snap mode input button depending upon the last use. If not set make sure the Distance option is picked. Drag the cursor upward and click at P5 when the dimension reads '-1010.00' (the opening is 910 + 100 for the wall thickness).

Right click to repeat the command and click on 'Line 2' near to P2. Make sure the Snap input snap mode input button ( f7 key ) is set and snap to the modified end of 'Line 1' (P5) so that this line end is adjusted to the same horizontal position.

Repeat the command again, select 'Line 3' near to P3. Make sure the Distance Input distance input mode button ( f8 key ) is set and drag the cursor upward and click at P6 when the dimension reads '-1920.00' (the opening is 1820 + 100 for the wall thickness).

Repeat again and click on 'Line 4' near to P4. Make sure the Snap input snap mode input button ( f7 key ) is set and snap to the modified end of 'Line 3' (P6) so that this line end is adjusted to the same horizontal position.

'Line 5' needs to be extended by 100mm at both ends. Repeat the command, select 'Line 5' near to P7 and snap to P9.Finally repeat again then select 'Line 5' near to P8 and snap to P10.

We have now created the openings and need to close the wall ends. Select the Line button and make sure the Snap input snap mode input button ( f7 key ) is set. Draw a line between the ends of 'Line 1 & 2' (at P5). Then another between 'Lines 3 & 4' (at P6) then two more to close the ends of the wall defined by 'Lines 5 & 6' (at P9 & P10). Remember after each line is drawn right -click to cancel line drawing and again to repeat the command.
