Export

Available in: Pro, Architectural

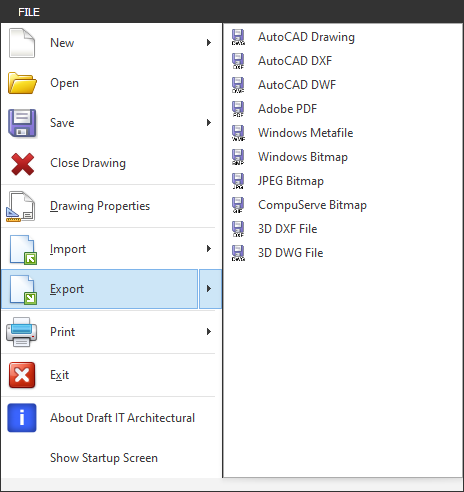

Use the Export command export button to export drawings from Draft it into other formats.

From the fly out menu select the export format required.

In the dialog box specify the file name and location, you can change the output format in the 'save as type' field if required.

Click on the 'Save' button. The supported file formats are listed below this image.

AutoCAD DWG

AutoCAD DXF

AutoCAD DWF

Adobe PDF **

Windows Metafile WMF

Windows Bitmap

JPEG Bitmap JPG

CompuServe Bitmap GIF

The following export option is Available in: Architectural Only

This file format creates a 3D DXF model from the drawing. This file can then be read into 3D CAD systems that supporting that format.

If the PDF file type selected then the following dialog box is displayed after specifying the file name.

Click on the 'Use PDF Security' option to allow the various PDF output options to be selected.
