The Ribbon

Available in: FREE, Plus, Pro Architectural

Depending on the version of Draft it in use the content of the ribbon may differ from the image below.

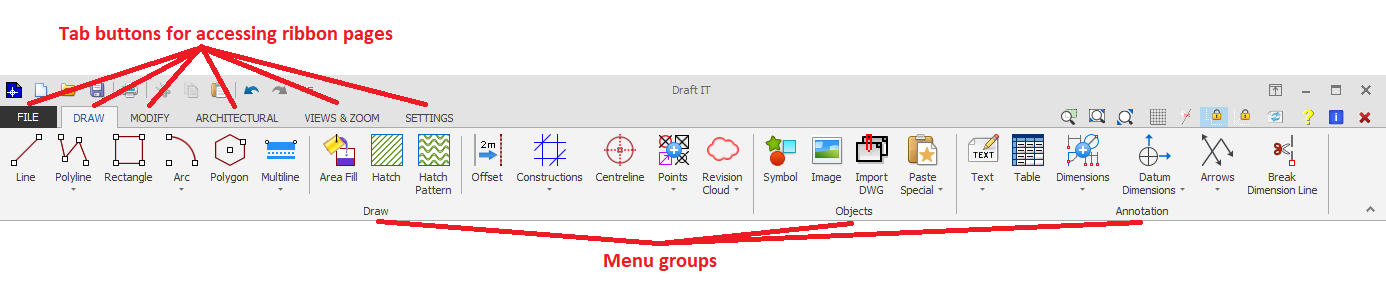

The Ribbon menu consists of a number of ribbon pages which can be accessed using the tab buttons along the top of the ribbon. Various commands within the system will automatically change the ribbon to display a Command Specific Ribbon. Such a ribbon will contain features and options specific to that command. e.g. text, dimensions.

Draft it contains the following ribbon pages:- Draw, Modify, Architectural, Views & Zoom, Settings
